Relational data 3 - simple statistics

Download exercises zip

Browse files online

We will now compute simple statistics about graphs (they don’t require node discovery algorithms).

What to do

  • unzip exercises in a folder, you should get something like this:

relational
    relational1-intro.ipynb
    relational1-intro-sol.ipynb
    relational2-binrel.ipynb
    relational2-binrel-sol.ipynb
    relational3-simple-stats.ipynb
    relational3-simple-stats-sol.ipynb
    relational4-chal.ipynb
    jupman.py
    soft.py

WARNING: to correctly visualize the notebook, it MUST be in an unzipped folder !

  • open Jupyter Notebook from that folder. Two things should open, first a console and then browser. The browser should show a file list: navigate the list and open the notebook relational/relational3-simple-stats.ipynb

WARNING 2: DO NOT use the Upload button in Jupyter, instead navigate in Jupyter browser to the unzipped folder !

  • Go on reading that notebook, and follow instuctions inside.

Shortcut keys:

  • to execute Python code inside a Jupyter cell, press Control + Enter

  • to execute Python code inside a Jupyter cell AND select next cell, press Shift + Enter

  • to execute Python code inside a Jupyter cell AND a create a new cell aftwerwards, press Alt + Enter

  • If the notebooks look stuck, try to select Kernel -> Restart

Outdegrees and indegrees

The out-degree \(\deg^+(v)\) of a node \(v\) is the number of edges going out from it, while the in-degree \(\deg^-(v)\) is the number of edges going into it.

NOTE: the out-degree and in-degree are not the sum of weights ! They just count presence or absence of edges.

For example, consider this graph:

[2]:
from soft import draw_adj

d = {
    'a' : ['b','c'],
    'b' : ['b','d'],
    'c' : ['a','b','c','d'],
    'd' : ['b','d']
}


draw_adj(d)
../_images/relational_relational3-simple-stats-sol_5_0.png

The out-degree of d is 2, because it has one outgoing edge to b but also an outgoing edge to itself. The indegree of d is 3, because it has an edge coming from b, one from c and one self-loop from d itself.

Exercise - outdegree_adj

✪ RETURN the outdegree of a node from graph d represented as a dictionary of adjacency lists

  • If v is not a vertex of d, raise ValueError

Show solution
[3]:
def outdegree_adj(d, v):
    raise Exception('TODO IMPLEMENT ME !')

try:
    outdegree_adj({'a':[]},'b')
    raise Exception("SHOULD HAVE FAILED !")
except ValueError:
    "passed test"

d1 = { 'a':[] }
assert outdegree_adj(d1,'a') == 0

d2 = { 'a':['a'] }
assert outdegree_adj(d2,'a') == 1

d3 = { 'a':['a','b'],
       'b':[] }
assert outdegree_adj(d3,'a') == 2

d4 = { 'a':['a','b'],
       'b':['a','b','c'],
       'c':[] }
assert outdegree_adj(d4,'b') == 3

Exercise - outdegree_mat

✪✪ RETURN the outdegree of a node i from a graph boolean matrix \(n\) x \(n\) represented as a list of lists

  • If i is not a node of the graph, raise ValueError

Show solution
[4]:
def outdegree_mat(mat, i):
    raise Exception('TODO IMPLEMENT ME !')

try:
    outdegree_mat([[False]],7)
    raise Exception("SHOULD HAVE FAILED !")
except ValueError:
    "passed test"

try:
    outdegree_mat([[False]],-1)
    raise Exception("SHOULD HAVE FAILED !")
except ValueError:
    "passed test"

m1 = [ [False] ]
assert outdegree_mat( m1, 0) == 0

m2 = [ [True] ]
assert outdegree_mat( m2, 0) == 1

m3 = [ [True, True],
       [False, False] ]
assert outdegree_mat( m3, 0) == 2

m4 = [ [True, True, False],
       [True, True, True],
       [False, False, False] ]
assert outdegree_mat(m4,1) == 3

Exercise - outdegree_avg

✪✪ RETURN the average outdegree of nodes in graph d, represented as dictionary of adjacency lists.

  • Assume all nodes are in the keys.

Show solution
[5]:
def outdegree_avg(d):
    raise Exception('TODO IMPLEMENT ME !')

d1 = { 'a':[] }
assert outdegree_avg(d1) == 0

d2 = { 'a':['a'] }
assert round( outdegree_avg(d2), 2) == 1.00 / 1.00

d3 = { 'a':['a','b'],
       'b':[] }
assert round( outdegree_avg(d3), 2) == (2 + 0) / 2

d4 = { 'a':['a','b'],
       'b':['a','b','c'],
       'c':[] }
assert round( outdegree_avg(d4), 2) == round( (2 + 3) / 3 , 2)

Exercise - indegree_adj

The indegree of a node v is the number of edges going into it.

✪✪ RETURN the indegree of node v in graph d, represented as a dictionary of adjacency lists

  • If v is not a node of the graph, raise ValueError

Show solution
[6]:
def indegree_adj(d, v):
    raise Exception('TODO IMPLEMENT ME !')

try:
    indegree_adj({'a':[]},'b')
    raise Exception("SHOULD HAVE FAILED !")
except ValueError:
    "passed test"

d1 = { 'a':[] }
assert indegree_adj(d1,'a') == 0

d2 = {'a':['a']}
assert indegree_adj(d2,'a') == 1

d3 = { 'a':['a','b'],
       'b':[]}
assert indegree_adj(d3, 'a') == 1

d4 = { 'a':['a','b'],
       'b':['a','b','c'],
       'c':[]}
assert indegree_adj(d4, 'b') == 2

Exercise - indegree_mat

✪✪ RETURN the indegree of a node i from a graph boolean matrix nxn represented as a list of lists

  • If i is not a node of the graph, raise ValueError

Show solution
[7]:
def indegree_mat(mat, i):
    raise Exception('TODO IMPLEMENT ME !')

try:
    indegree_mat([[False]],7)
    raise Exception("SHOULD HAVE FAILED !")
except ValueError:
    "passed test"

assert indegree_mat(
        [
            [False]
        ]
,0) == 0

m1 = [ [True] ]
assert indegree_mat(m1, 0) == 1

m2 = [ [True, True],
       [False, False] ]
assert indegree_mat(m2, 0) == 1

m3 = [ [True, True, False],
       [True, True, True],
       [False, False, False] ]
assert indegree_mat( m3, 1) == 2

Exercise - indegree_avg

✪✪ RETURN the average indegree of nodes in graph d, represented as dictionary of adjacency lists.

  • Assume all nodes are in the keys

Show solution
[8]:
def indegree_avg(d):
    raise Exception('TODO IMPLEMENT ME !')

d1 = { 'a':[] }
assert indegree_avg(d1) == 0

d2 = { 'a':['a'] }
assert round( indegree_avg(d2), 2) == 1.00 / 1.00

d3 = { 'a':['a','b'],
       'b':[]}
assert round( indegree_avg(d3), 2) == (1 + 1) / 2

d4 = { 'a':['a','b'],
       'b':['a','b','c'],
       'c':[]}
assert round( indegree_avg(d4), 2) == round( (2 + 2 + 1) / 3 , 2)

Was it worth it?

QUESTION: Is there any difference between the results of indegree_avg and outdegree_avg ?

Show answer

networkx Indegrees and outdegrees

With Networkx we can easily calculate indegrees and outdegrees of a node:

[9]:

import networkx as nx

# notice with networkx if nodes are already referenced to in an adjacency list
# you do not need to put them as keys:

G=nx.DiGraph({
    'a':['b','c'],        # node a links to b and c
    'b':['b','c', 'd']    # node b links to b itself, c and d
})

draw_nx(G)
../_images/relational_relational3-simple-stats-sol_42_0.png
[10]:
G.out_degree('a')
[10]:
2

QUESTION: What is the outdegree of 'b' ? Try to think about it and then confirm your thoughts with networkx:

Show solution
[11]:
# write here


QUESTION: We defined indegree and outdegree. Can you guess what the degree might be ? In particular, for a self pointing node like 'b', what could it be? Try to use G.degree('b') methods to validate your thoughts.

Show solution
[12]:
# write here


Show answerShow solution
[13]:
# write here


Visualizing distributions

We will try to study the distributions visually. Let’s take an example networkx DiGraph:

[14]:
import networkx as nx

G1=nx.DiGraph({
    'a':['b','c'],
    'b':['b','c', 'd'],
    'c':['a','b','d'],
    'd':['b', 'd']
})

draw_nx(G1)
../_images/relational_relational3-simple-stats-sol_62_0.png

indegree per node

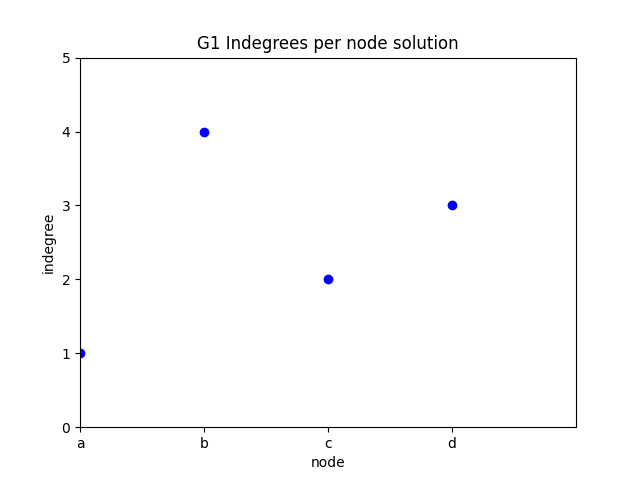

✪✪ Display a plot for graph G where the xtick labels are the nodes, and the y is the indegree of those nodes.

Note: instead of xticks you might directly use categorical variables IF you have matplotlib >= 2.1.0

Here we use xticks as sometimes you might need to fiddle with them anyway

Expected result:


To get the nodes, you can use the G1.nodes() function:

[15]:
G1.nodes()
[15]:
NodeView(('a', 'b', 'c', 'd'))

It gives back a NodeView which is not a list, but still you can iterate through it with a for in cycle:

[16]:
for n in G1.nodes():
    print(n)
a
b
c
d

Also, you can get the indegree of a node with

[17]:
G1.in_degree('b')
[17]:
4
Show solution
[18]:

# write here


indegree per node bar plot

The previous plot with dots doesn’t look so good - we might try to use instead a bar plot. First look at this example, then proceed with the exercise

✪✪ Display a bar plot for graph G1 where the xtick labels are the nodes, and the y is the indegree of those nodes.

Expected result:


Show solution
[19]:

# write here


[ ]:

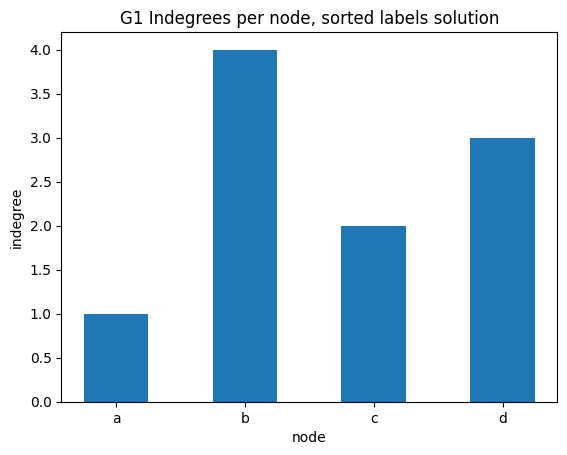

indegree per node sorted alphabetically

✪✪ Display the same bar plot as before, but now sort nodes alphabetically.

NOTE: you cannot run .sort() method on the result given by G1.nodes(), because nodes in network by default have no inherent order. To use .sort() you need first to convert the result to a list object.

You should get something like this:


Show solution
[20]:

# write here


[21]:
# write here

indegree per node sorted

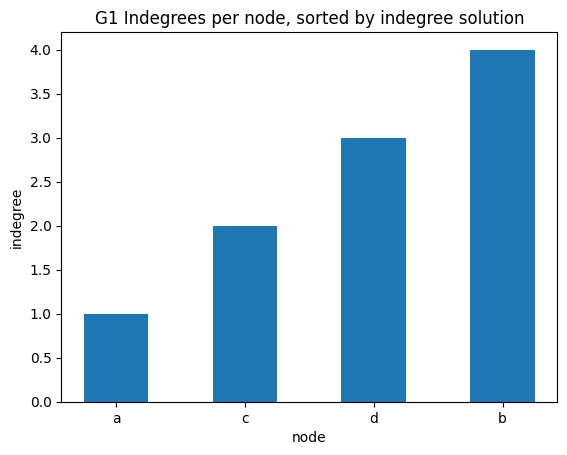

✪✪✪ Display the same bar plot as before, but now sort nodes according to their indegree. This is more challenging, to do it you need to use some sort trick.

Expected result:


Show solution
[22]:

# write here


out degrees per node sorted

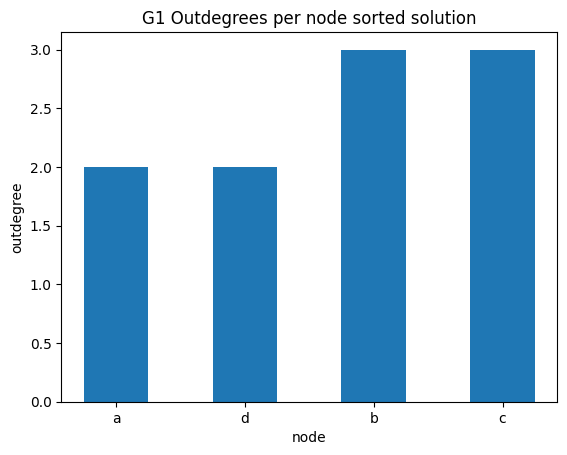

✪✪✪ Do the same graph as before for the outdegrees.

Expected result:


You can get the outdegree of a node with:

[23]:
G1.out_degree('b')
[23]:
3
Show solution
[24]:

# write here


degrees per node

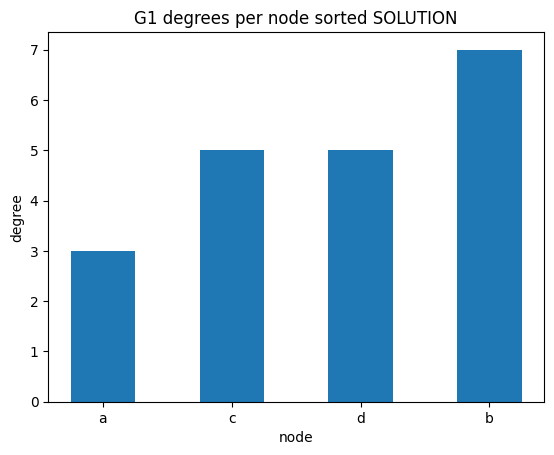

✪✪✪ We might check as well the sorted degrees per node, intended as the sum of in_degree and out_degree. To get the sum, use G1.degree(node) function.

Expected result:


Show solution
[25]:

# write here


In out degrees per node

✪✪✪✪ Look at this example, and make a double bar chart sorting nodes by their total degree. To do so, in the tuples you will need vertex, in_degree, out_degree and also degree.


Show solution
[26]:

# write here


Frequency histogram

Now let’s try to draw degree frequencies, that is, for each degree present in the graph we want to display a bar as high as the number of times that particular degree appears.

For doing so, we will need a matplot histogram, see documentation

We will need to tell matplotlib how many columns we want, which in histogram terms are called bins. We also need to give the histogram a series of numbers so it can count how many times each number occurs. Let’s consider this graph G2:

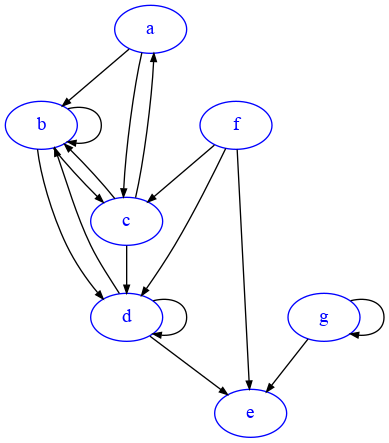

[27]:
import networkx as nx

G2=nx.DiGraph({
    'a':['b','c'],
    'b':['b','c', 'd'],
    'c':['a','b','d'],
    'd':['b', 'd','e'],
    'e':[],
    'f':['c','d','e'],
    'g':['e','g']
})


draw_nx(G2)

../_images/relational_relational3-simple-stats-sol_109_0.png

If we take the the degree sequence of G2 we get this:

[28]:
degrees_G2 = [G2.degree(n) for n in G2.nodes()]

degrees_G2
[28]:
[3, 7, 6, 7, 3, 3, 3]

We see 3 appears four times, 6 once, and seven twice.

Let’s try to determine a good number for the bins. First we can check the boundaries our x axis should have:

[29]:
min(degrees_G2)
[29]:
3
[30]:
max(degrees_G2)
[30]:
7

So our histogram on the x axis must go at least from 3 and at least to 7. If we want integer columns (bins), we will need at least ticks for going from 3 included to 7 included, so at least ticks for 3,4,5,6,7. For getting precise display, wen we have integer x it is best to also manually provide the sequence of bin edges, remembering it should start at least from the minimum included (in our case, 3) and arrive to the maximum + 1 included (in our case, 7 + 1 = 8)

NOTE: precise histogram drawing can be quite tricky, please do read this StackOverflow post for more details about it.

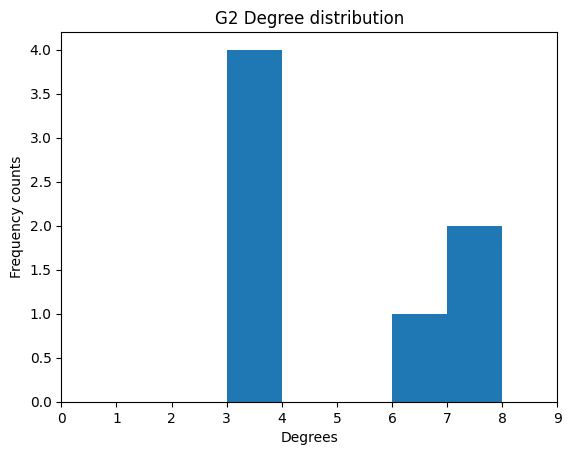

[31]:

import matplotlib.pyplot as plt
import numpy as np

degrees = [G2.degree(n) for n in G2.nodes()]

# add histogram

# in this case hist returns a tuple of three values
# we put in three variables
n, bins, columns = plt.hist(degrees_G2,
                            bins=range(3,9),  #  3 *included* , 4, 5, 6, 7, 8 *included*
                            width=1.0)        #  graphical width of the bars

plt.xlabel('Degrees')
plt.ylabel('Frequency counts')
plt.title('G2 Degree distribution')
plt.xlim(0, max(degrees) + 2)
plt.show()
../_images/relational_relational3-simple-stats-sol_116_0.png

As expected we see 3 is counted four times, 6 once, and seven twice.

Exercise - better histogram display

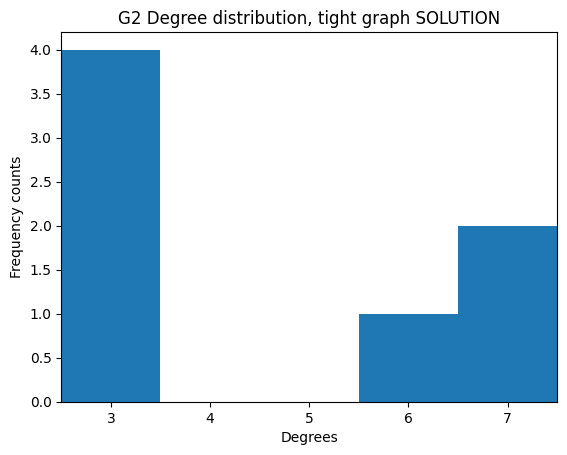

✪✪✪ Still, it would be visually better to align the x ticks to the middle of the bars with xticks, and also to make the graph more tight by setting the xlim appropriately. This is not always easy to do.

Read carefully this StackOverflow post and try do it by yourself.

NOTE: set one thing at a time and try if it works(i.e. first xticks and then xlim), doing everything at once might get quite confusing

Expected result:


Show solution
[32]:
# write here


../_images/relational_relational3-simple-stats-sol_122_0.png

Graph models

Let’s study frequencies of some known network types.

Exercise - Erdős–Rényi model

✪✪ A simple graph model we can think of is the so-called Erdős–Rényi model: is is an undirected graph where have n nodes, and each node is connected to each other with probability p. In networkx, we can generate a random one by issuing this command:

[33]:
G = nx.erdos_renyi_graph(10, 0.5)

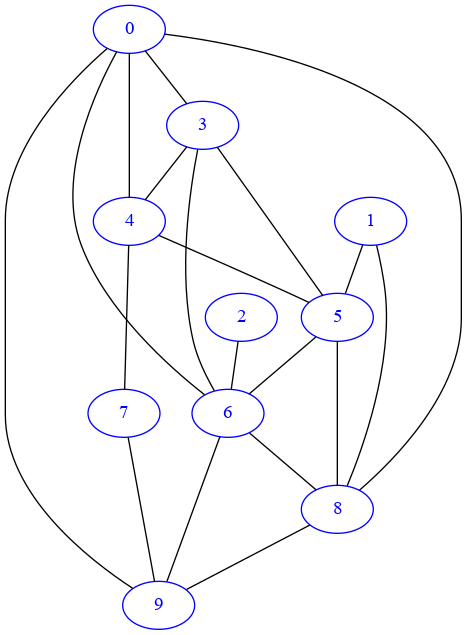

In the drawing, by looking the absence of arrows confirms it is undirected:

[34]:
draw_nx(G)
../_images/relational_relational3-simple-stats-sol_128_0.png

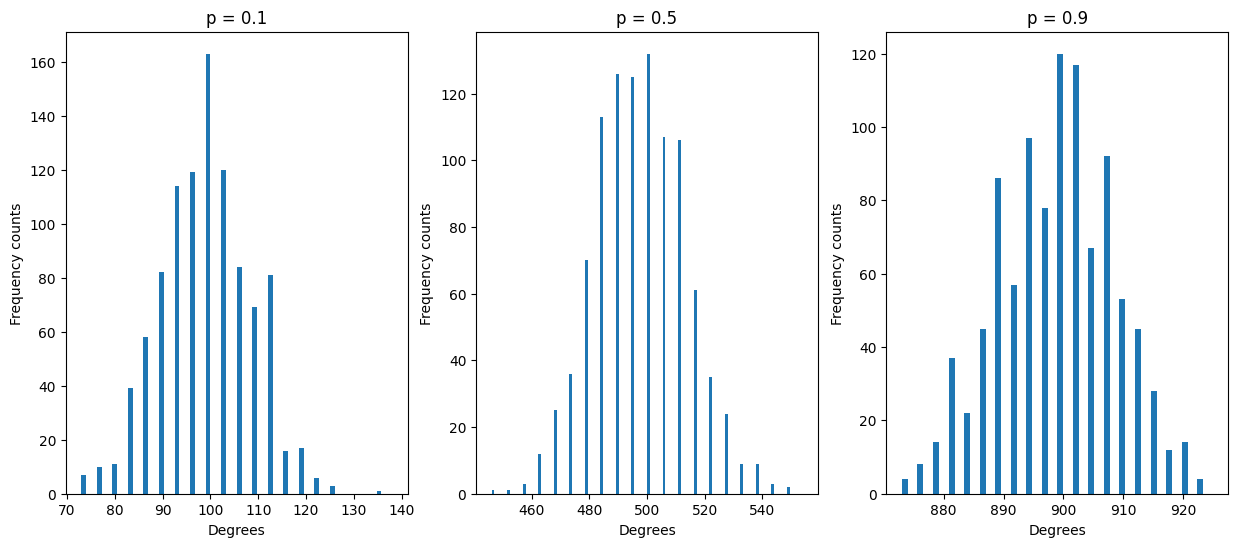

Try plotting degree distribution for different values of p (0.1, 0.5, 0.9) with a fixed n=1000, putting them side by side on the same row. What does their distribution look like ? Where are they centered ?

  • to put them side by side, look at this example

  • to avoid rewriting the same code again and again, define a plot_erdos(n,p,j) function to be called three times.

Expected result:


Show solution
[35]:

# write here


Continue

Go on with the challenges
